Introduction
Laowa has already produced a couple of good tilt-shift lenses, such as the T/S 55mm f/2.8 and the impressive T/S 100mm f/2.8. Now they’ve introduced an ultra-wide-angle option — the T/S 17mm f/4 — designed primarily for architectural work. It offers the same handling flexibility as the previous two, including a tripod foot. Let’s see how the optics perform on this one!
We tested this lens on a 46 Mp Nikon Z7ii (Sample images were taken with Nikon Zf , and Sony A7III )
Sample images in high resolution here.
Sample Images
Most of the sample images in this review and many more can be found in higher resolution here.
Specifications
| Focal Length | 17mm |
| Angle of View | 126.2° |
| # of Aperture Blades | 14 |
| Max Aperture | f/4 |
| Min Aperture | f/22 |
| Min Focus Distance (Max magnification) | 25cm (0.13X) |
| Filter Size | 86mm |
| Tilt | ±10° |
| Shift | ±12mm |
| Lens Mount | E / RF / Z / L / XCD / GFX |
| Weight | ≈ 810 g |
| Size (D x L) | Ø 93 x 111 mm |
| Elements/Group | 18 elements / 12 groups |
| Buy new: Laowa Store, Amazon (anywhere), B&H for $1249 (Affiliate links) |
Disclosure
Laowa kindly loaned us this lens for a couple of weeks for testing and review. This review is a team effort.

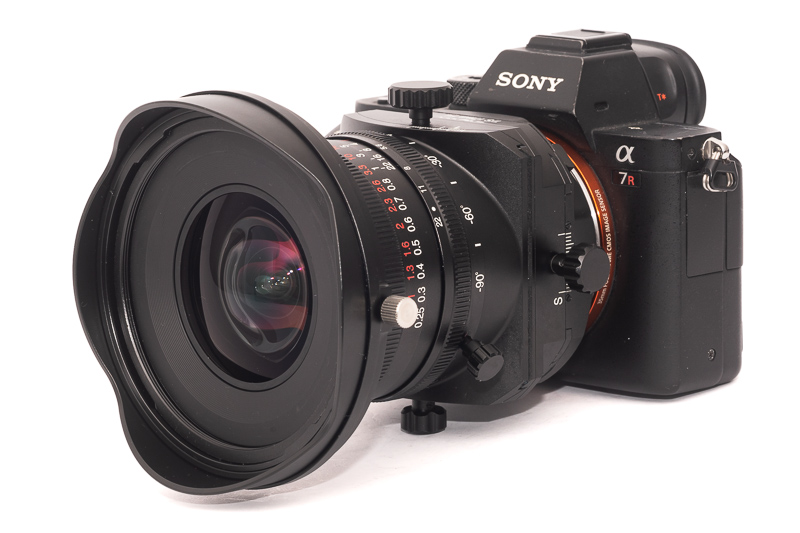

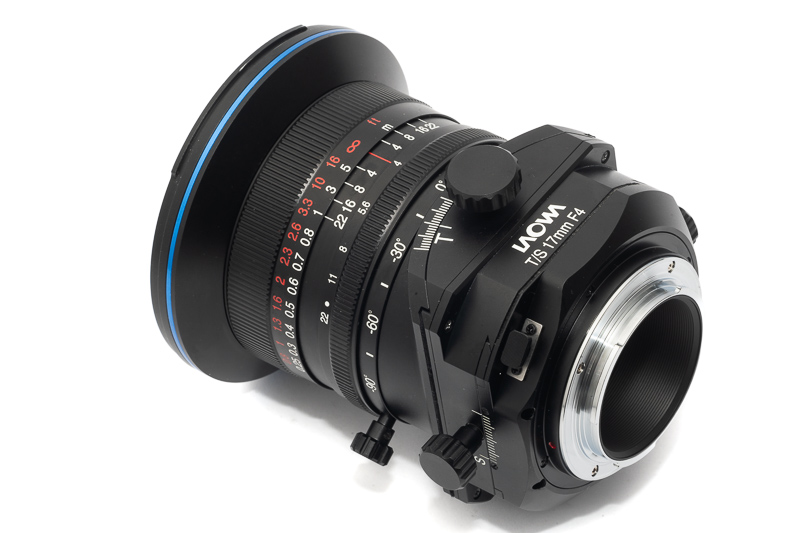

Handling and Build Quality
The Laowa T/S 17mm f/4 is built of metal and glass, including the lens barrel, control rings, knobs, levers, mount plate, and the included lens hood. The lens comes with standard rear and hard plastic clip-on front caps. The lens looks and feels to be built solidly. All markings are engraved and filled with paint. There are no electronic contacts for aperture control or EXIF data transfer.
Despite its fully metal-and-glass build, it weighs only 810 g. It is by no means light, but keep in mind that this is not much heavier than standard, quality lenses and considerably lighter than its siblings, the 55mm and 100mm f/2.8.
It is a fully manual lens with no electronic contacts, and there is no visible weather sealing. The aperture ring turns smoothly and has click stops at every full stop, with a gentle click. While the aperture ring only clicks at full stops, you can set the aperture value between two stops. The aperture values are spaced with varying distances on the ring.
The lens includes an Arca-Swiss compatible foot, attached to a collar support by two screws, which in turn is secured to the lens collar by two additional screws on either side. This setup is intended to stabilise the heavy lens-camera assembly on a tripod.
The tilt/shift feature is quite advanced. You can shift the lens up to 12mm in each direction and tilt it up to 10° in both directions; each of these can be set using a knob. They use small gears for fine adjustment of the movements. Separate knobs at the opposite side of each of these knobs lock the adjustments.
Having both locks and gears for fine adjustment of tilt and shift is a good feature. However, the locks are very abrupt—it feels like they are either fully locked or completely loose, with almost nothing in between. Once released, the full weight of the lens is left to the small adjustment gears, and because the lens is quite heavy, they struggle to handle the load. As a result, making fine adjustments with the gears becomes very difficult, if not almost impossible.
You can rotate the lens 360° in 15° increments, enabling the same movements in any direction you desire. This is an impressive feature, as most other lenses typically allow rotation of only 90° to 180° in one direction and, at best, 90° in the opposite direction, often in 30° increments.
When you fully shift your lens in every direction and take a picture at all these settings with a click stop, you can stitch them to a panorama. The following panorama was captured by taking images at every other click stop (every 30°).
In addition to that, you can also rotate the complete camera-lens setup via the lens collar on the tripod foot 360°, which can also be locked with a separate knob.
A final plus is that you can mount a standard filter on the front — something no other tilt-shift lens at this focal length can offer.
Optical Features

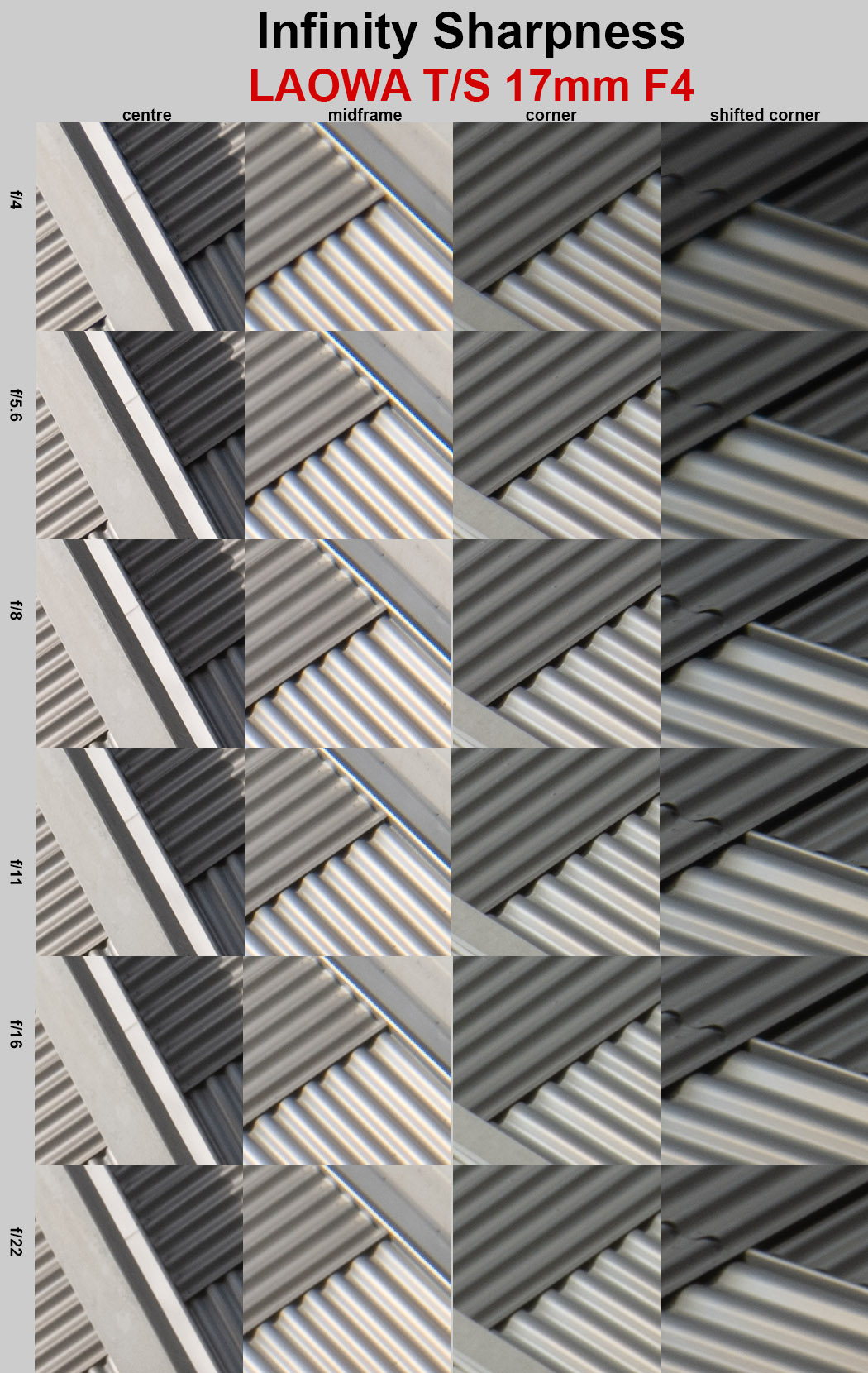

Sharpness (Infinity)
For the infinity sharpness test, we look at three areas of the image, centre, mid-frame, and corner, for this lens, as it can be shifted we also look at the corner in the shifted position. See highlighted areas in the images below!
Centre sharpness is excellent from f/4, the mid-frame is good, and the corner is fair to good. The shifted corner is only fair. Stopping down to f/5.6 improves sharpness all the way to the corner and good results at the shifted corner. At f/8, you get very good sharpness across the frame, and even the shifted corner improves further. Although the difference is small, for the best corner sharpness, f/11 or f/16 are required.
The lens shows a mid-zone dip in sharpness at wider apertures. When the scene contains a lot of fine detail in the mid-frame area, it’s best to stop down to at least f/8 or f/11.

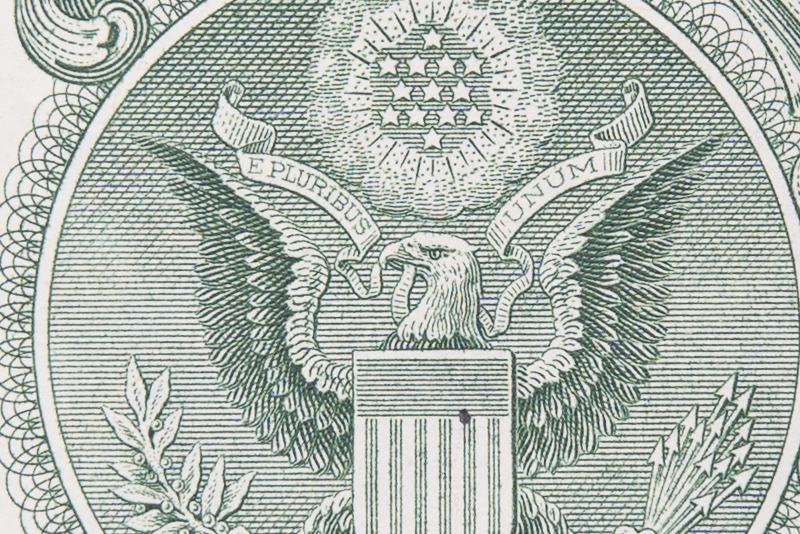

Sharpness (Close-up)
I’m not sure if this lens will be used for any closeups, but we tested it, and you can see the test shots here. The close-up sharpness is very good at all apertures; it does not improve much by stopping down.
Lens Distortion
Laowa’s strong track record in low-distortion wide-angle design really shows here. In this tilt-shift lens, where minimal distortion is critical, performance is excellent.

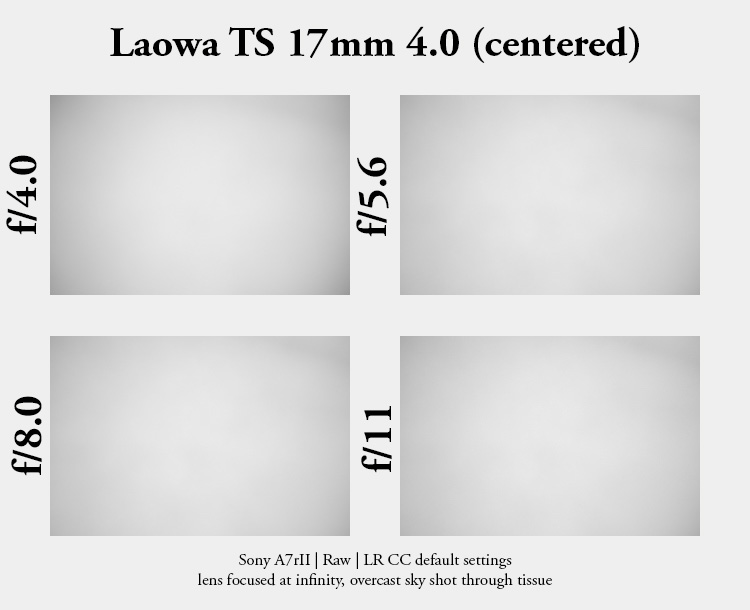

Vignetting
At its normal, centred position, vignetting is minimal, thanks to the lens’s ability to cover a medium-format sensor.
- F/4.0: 1 EV
- F/5.6: 1 EV
- F/8.0: 1 EV
- F/11: 0.9 EV

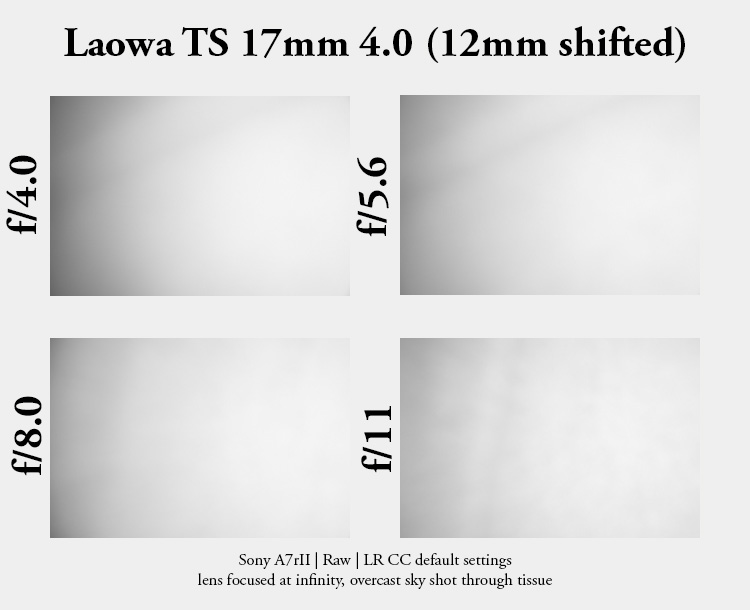

Things are different when the lens is fully shifted. Vignetting becomes noticeable and doesn’t improve much when stopping down, remaining relatively pronounced.
- F/4.0: 2.7 EV
- F/5.6: 2.6 EV
- F/8.0: 2.4 EV
- F/11: 2.3 EV
Focus Shift & Aberrations

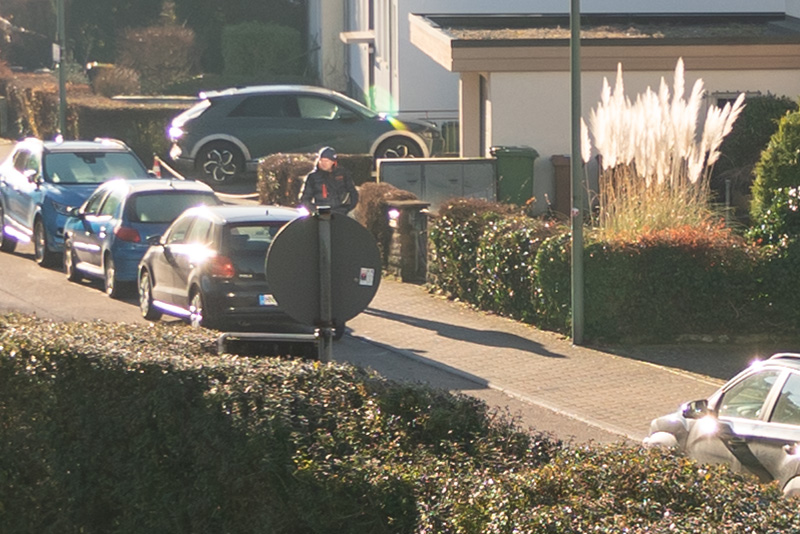

There’s no focus shift to worry about, but a small amount of longitudinal chromatic aberration is visible as purple fringing when pixel-peeping. It improves to being almost non-existent by one stop down at f/5.6 and is completely gone by f/8. In real-life situations, as seen in the second test series, it’s hardly noticeable even at f/4.
Lateral chromatic aberration is well controlled.
Flare Resistance
This is one area where the lens could be improved, as performance doesn’t look optimal. On the positive side, contrast remains very good in almost all shots, so there’s no veiling flare of note. However, the ghosting leaves much to be desired.

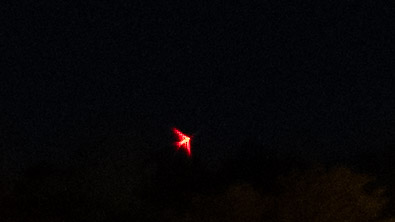

Coma
I doubt anyone would use an f/4 tilt-shift lens for astrophotography, so this section is unnecessary, but we’re showing the coma anyway, as it can negatively affect corner sharpness. The following images are all 100% crops of the image corner.
Sunstars
This lens has 14 rounded aperture blades, which isn’t the ideal configuration for producing attractive sunstars. Nonetheless, it can generate 14-pointed stars from around f/5.6, and while the rays lengthen as you stop down, they never become particularly well-defined.
Bokeh
With the tilt function you can make alterations to the focal plane and depending on the scene, the shape and position of the subject and the angles between camera and subject you can sometimes increase or decrease the depth of field.
In the scene above, when the lens is tilted up it looks like the depth of field is thinner and when the lens is tilted down it actually looks like the lens has been stopped down by a few stops.
The thing is, you need a lot of practice (some knowledge also helps) to make good use of the tilt function. I have seen some amazing pictures where the tilt has been used to great effect, but many simply look gimmicky, so I think it is an effect that should be used with caution.
Conclusion
| I LIKE | AVERAGE | I DON’T LIKE |
| Sharpness Lens distortion Vignetting (normal) CA control Handling & build quality |
Vignetting (shifted) Coma correction Sunstars midzone sharpness dip at wider apertures Price |
Flare resistance |
Overall, the Laowa 17mm f/4 T/S is a very strong ultra-wide-angle tilt-shift lens. Sharpness is excellent, although achieving the best corner sharpness when shifted requires stopping down to at least f/8. Distortion is extremely well controlled and chromatic aberration is well corrected.
Handling is versatile, with generous tilt and shift movements. As a bonus, the lens includes a tripod foot and a front filter thread, which adds to its practicality for architectural and landscape work.
Vignetting, coma, and sunstars are decent. Care should be taken when shooting directly into the sun, and for the best edge-to-edge sharpness, stopping down to f/8 is recommended.
The main drawbacks are its susceptibility to flare and its price. However, at this focal length and with this combination of features, there are essentially no true competitors for full-frame mirrorless cameras.
Writing articles like this one is both time-consuming and costs us a lot of money. If you found this article helpful and decided to buy one of these lenses, please consider using one of the affiliate links.
If you are not interested in buying any of the lenses, but you still found this article useful, interesting, or it saved you a lot of money, treat us to a coffee (donate)!
| Buy new: Laowa Store, Amazon (anywhere), B&H for $1249 (Affiliate links) |
Alternatives
TTArtisan Tilt-Shift 17mm f/4 ASPH.
This is the only direct competitor for mirrorless cameras. It is also available in several mirrorless mounts as well as for Fujifilm GFX medium format. The optical quality is at least as good as that of the Laowa, but it offers slightly less versatile movements — offering only ±8° of tilt and ±8 mm of shift and lacks both the fine adjustment gears and a tripod collar. On the other hand, it costs less than half the price of the reviewed lens.
Buy new: TTArtisan Store, B&H, Amazon (anywhere) for $550(Affiliate links)
Canon TS-E 17mm f/4.0L
The only alternative that matches the tested Laowa in both focal length and tilt/shift functionality. If you are a Canon user, this can be a real alternative; otherwise, you need to adapt this lens to your camera. Considering the already large and heavy lens, plus the lack of tripod foot/collar, I would go with the Laowa.
Buy used: ebay.com, ebay.de, ebay.co.uk from $1300 (Affiliate links)
Nikon PC-Nikkor 19mm f/4.0E ED N
I haven’t used the Nikon 19mm personally, but it appears to be an excellent lens based on what I’ve seen from trusted sources. If you’re a Nikon (D)SLR user, it’s definitely worth considering; otherwise, you’ll need to adapt it to other digital cameras, and the lack of a tripod foot or collar makes it quite front-heavy.
Buy used: ebay.com, ebay.de, ebay.co.uk from $2500 (Affiliate links)
LAOWA 15mm f/4.5 Zero-D Shift
This lens is wider but offers only the shift feature (no tilt). If shift alone is sufficient for your needs, it’s definitely worth considering — though note that it provides 1 mm less shift.
Buy new: Laowa Store, amazon (anywhere) for $1200 (Affiliate links)
Buy used: ebay.com, ebay.de, ebay.co.uk from $1000 (Affiliate links)
